Marine Arch Rubber Fender

Features:
1. High energy absorption and low reaction force
2. High stress concentration
3. Easy replacement firm for installation
4. Easy to install and change
5. Tough and reliable design
6. Wide ranges of sizes and energy capacities
7. Bolted-on UHMW PE reduce the friction factor and shear force

BASIC INFO Production Testing Packaging Cases

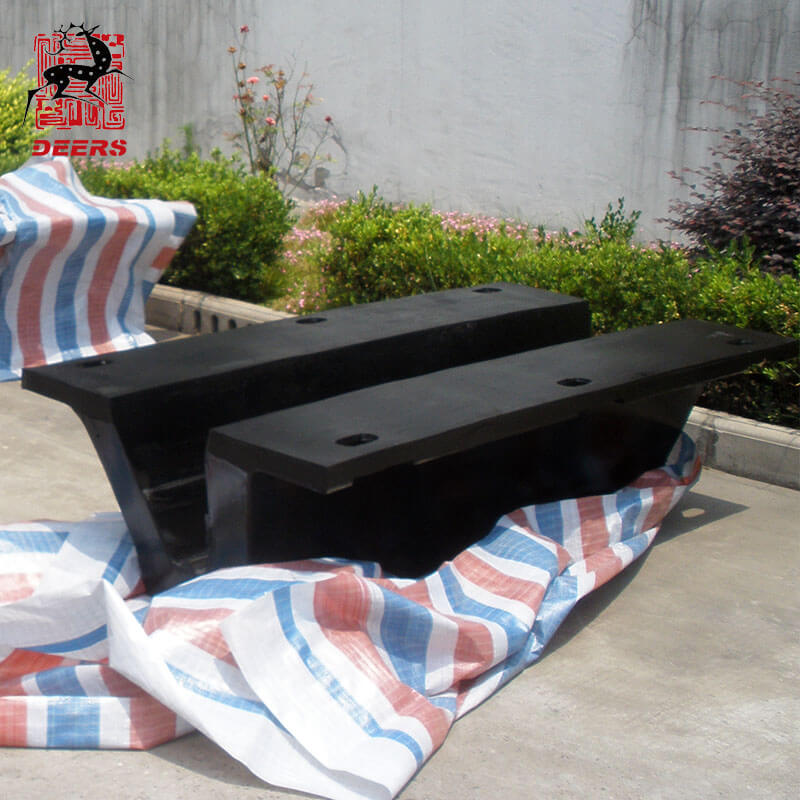

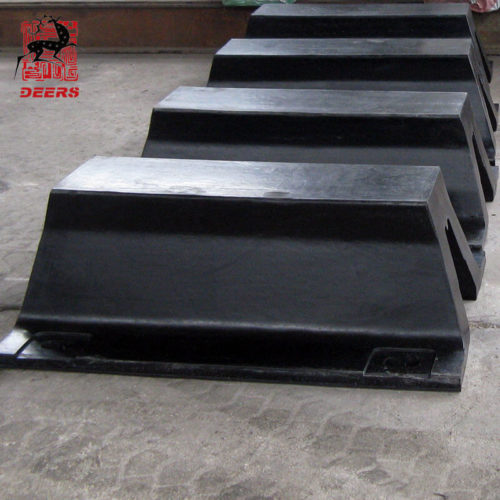

Arch fender (V Type Rubber Fender) is easily installed solution to prevent damage from smaller vessels. It is suitable for the harbor corner.

View testing videos about our marine arch fender:


Specifications:

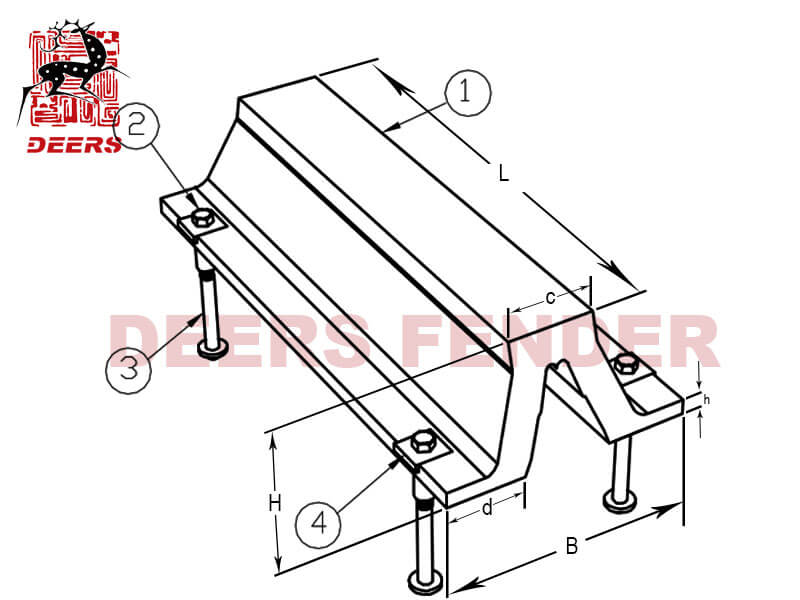

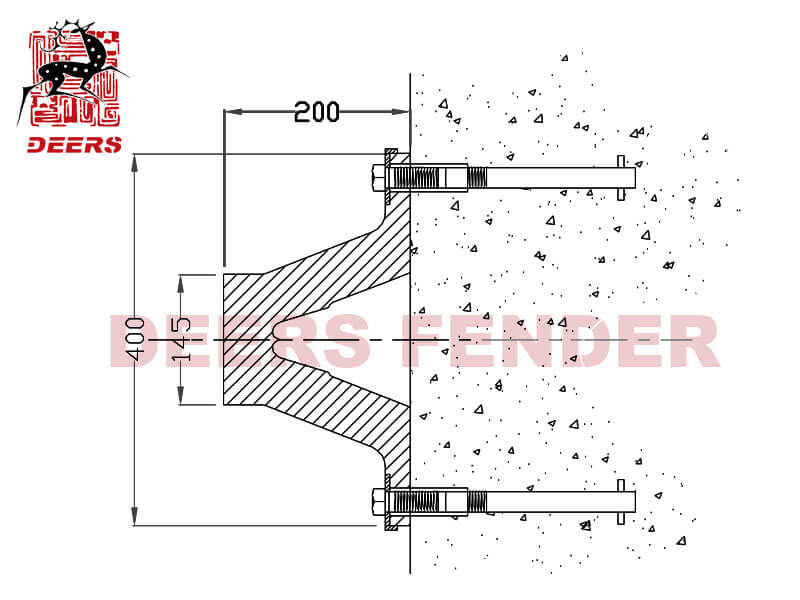

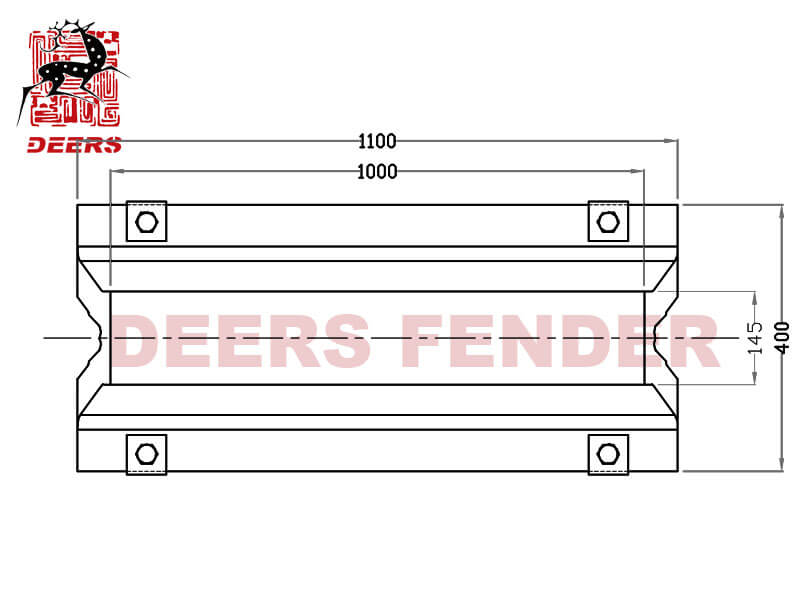

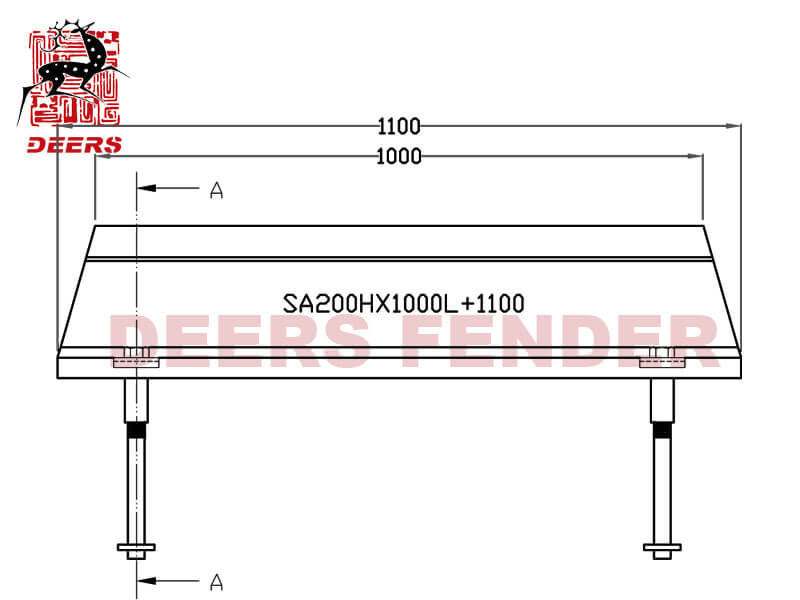

Arch Fender size

Model B(mm) b(mm) c(mm) d(mm) H(mm) h(mm) S(mm)
SA-A200H 400 320 145 128 200 30 260
SA-A250H 500 410 175 160 250 33 300
SA-A300H 600 490 225 196 300 33 300
SA-A400H 800 670 300 260 400 40 360
SA-A500H 1000 840 375 325 500 45 420
SA-A600H 1200 1010 450 390 600 54 480
SA-A800H 1600 1340 600 520 800 72 640
SA-A1000H 2000 1680 750 650 1000 90 640

View production videos about our marine fenders:

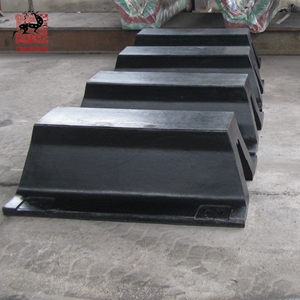

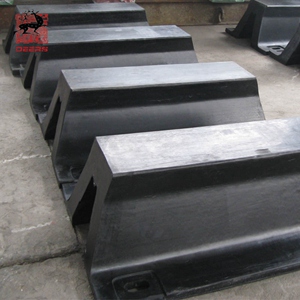

Production Workshops

Rubber Workshop

View testing videos about our rubber fenders:

Cone Fender Compress Testing

Armored Floating Hose Pressure Testing

Super Cell Rubber Fender Compress Testing

Arch Fender Compress Testing

Cylindrical Rubber Fender Compress Testing
