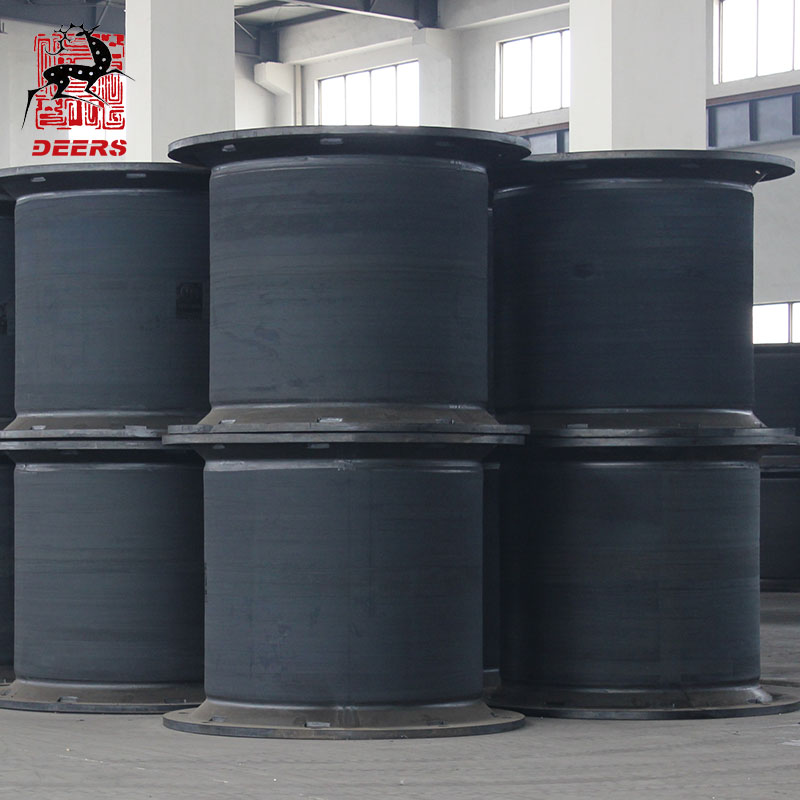

Cell Rubber Fender

Features
1. High E/R.H(energy absorption/reaction force. product height) Value
2. More Reasonable Structure
3. Super cell rubber fender has the same installation bolt pitch and bolt holes with the general rubber fender.
4. Minor affection in angular berthing.

BASIC INFO Production Testing Packaging Cases

Features
(1) High E/R.H(energy absorption/reaction force. product height) Value
Compare with general cell rubber fenders, YGCH super cell rubber fenders have 15% higher E/R.H value. The general cell rubber fender has 0.375~0.385 E/R.H, while the super one has 0.43~0.44 normally.

For Instance

Specifications Rated Deflection% Reaction Force Energy absorption E/R.H
SC1250 47.5 695.5 333.5 0.384
SC2000 52.5 1780 1564 0.439

(2) More Reasonable Structure
Compare with normal rubber fender, super cell rubber is more reasonable in the structure design. A smoothjoint is adopted between the fender buffer and flange to reduce the stress concentration in fender bottom during the deflection, which result in more reasonable force dispersion, furthermore the deflection value of the fender is increasedto 52.5% from the normal 47.5%.

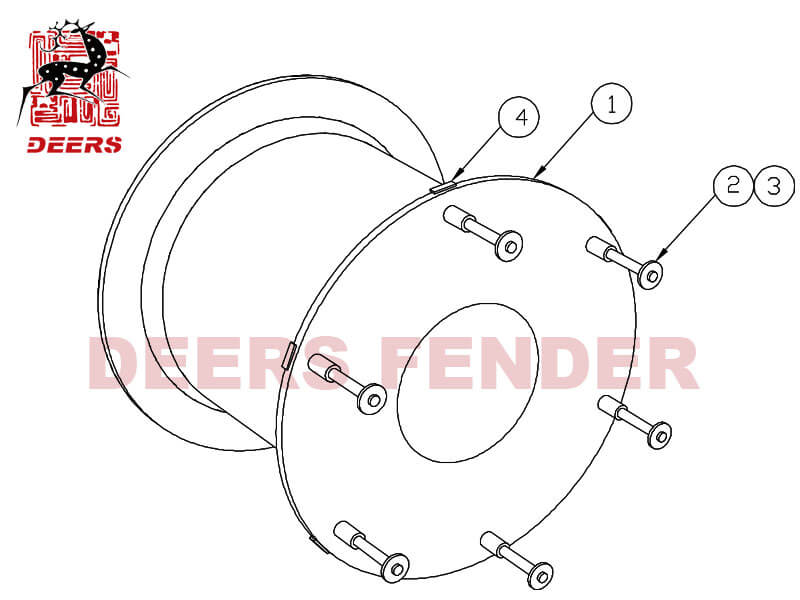

super-cell-fender-structure

(3) Super cell rubber fender has the same installation bolt pitch and bolt holes with the general rubber fender.
(4) Minor affection in angular berthing.
View testing videos about our cell fender:

Specifications

super-cell-fender-specifications

Specifications (mm) H h D1 D2 n-“d MD h1 L
SC400 400 25 550 650 4-“30 22 10 270
SC500 500 25 550 650 4-“32 24 12 300
SC630 630 30 700 840 4-“39 30 14 330
SC800 800 30 900 1050 6-“40 32 14 360
SC1000 1000 35 1100 1300 6-“47 39 18 430
SC1150 1150 40 1300 1500 6-“50 42 22 500
SC1250 1250 45 1450 1650 6-“53 45 22 500
SC1450 1450 47 1650 1850 6-“61 52 26 570
SC1600 1600 50 1800 2000 8-“61 52 28 570
SC1700 1700 55 1900 2100 8-“66 56 30 620
SC2000 2000 55 2000 2200 8-“74 64 32 700
SC2250 2250 60 2300 2550 10-“74 64 36 700
SC2500 2500 70 2700 2950 10-“74 64 38 700
SC3000 3000 75 3150 3350 12-“90 76 40 800
