D Type Rubber Fender

>>Cases of recent product transactions-View All Cases
D100*L1000mm        H300*L3000mm
D200*L2500mm        D200*L3300mm

>>BV SGS product testing certificates or PIANC qualification certificate

>>Online factory, you can view workshop at any time- Visit Factory

>>Maritime Exhibition Attended
Europort-Rotterdam, Netherlands       APM-Singapore
NEVA-St Petersburg, Russia                 AAPA-Uruguay

BASIC INFO Production Testing Packaging Cases

D type rubber fender can provide an excellent barrier against damage from all sizes and shapes of vessels. Fenders can be installed at a relatively low cost and can also be cut to the length required. These rubber fenders can be installed on the wharf wall directly. Nanjing Deers Industrial Co., Ltd can supply a range of D Fender(Semi-cylindrical Fenders) to meet a wide variety of port installation requirements. Due to the outstanding stretched ability of our raw material, the stretched length can reach 10 meters by our extrusion test.

 D Type Fender Feature:

1. Suitable reaction force and energy absorption.
2. Low weight; easy installation and maintenance.
3. Applicable for frame docks due to the smaller bottom width.

 D Type Fender Type:

1.DD-type: The inner hollow part follows a D shape.
2.DO-type: The inner hollow part follows an O shape.

 D Rubber Fender Application:

1.Jetties and wharves for small craft
2.Tugs and workboats
3.Pontoon protection
4.Inland waterways
5.General-purpose fendering

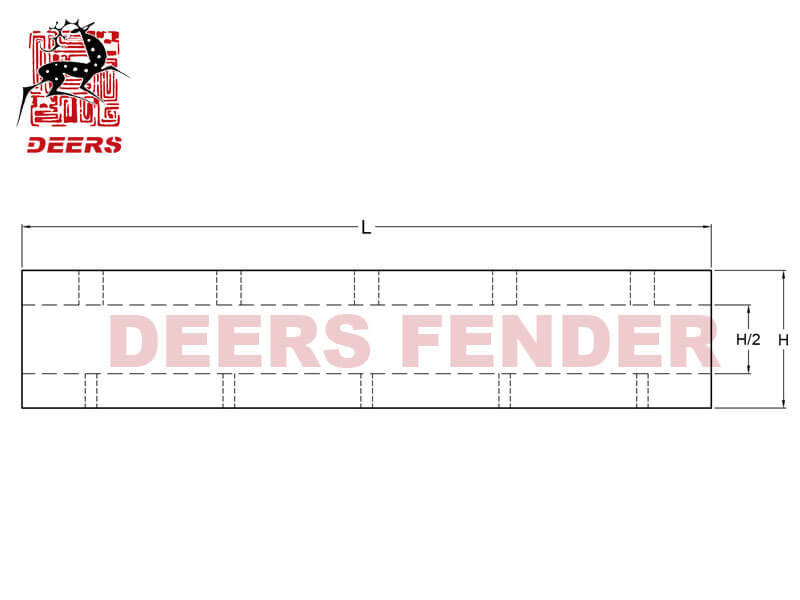

 D Fender Top Installation:

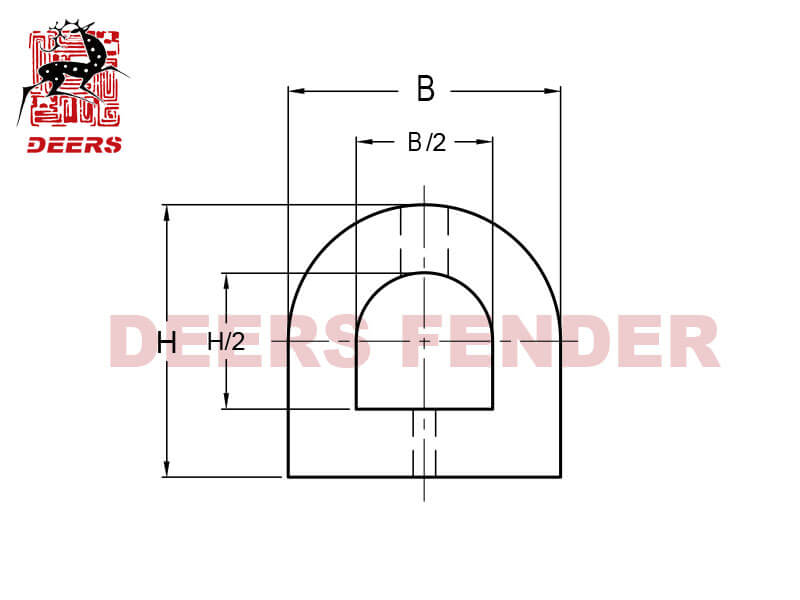

 D Fender Side Installation:

Model L A D d B B h P n Weight
(m) Ø(mm) Ø(mm) (mm) (mm) (mm) (mm) (mm) #Fastening Points (kg)
D200H 1000 200 55 28 200 200 30 600 3 37
D200H 1500 150 55 28 200 200 30 600 3 56
D200H 2000 250 55 28 200 200 30 500 4 74
D300H 900 150 65 32 300 300 40 600 2 80
D300H 1000 200 65 32 300 300 40 600 2 67
D300H 1500 150 65 32 300 300 40 600 3 105
D300H 2000 250 65 32 300 300 40 500 5 134
D300H 1000 200 65 32 360 300 40 600 2 80
D300H 1500 150 65 32 360 300 40 600 3 120
D400H 1500 150 65 32 400 300 55 400 4 150
D400H 2000 200 65 32 400 400 55 400 5 200
D500H 1000 150 55 28 500 400 60 350 3×2 195
D500H 1500 150 55 28 500 500 60 400 4×2 298
D500H 2000 200 55 28 500 500 60 400 5×2 395

 Performance:

Rated Deflection 50%
Model Reaction Force (KN) Energy Absorption (KN-M)
D200H×200×1000L 147 5.1
D200H×200×1500L 220 7.7
D200H×200×2000L 294 10.2
D300H×300×900L 270 10
D300H×300×1000L 300 12
D300H×300×1500L 450 17
D300H×300×2000L 600 24
D300H×360×1000L 323 13
D300H×360×2000L 480 19.6
D400H×400×1500L 585 30
D400H×400×2000L 780 40
D500H×500×1000L 460 32
D500H×500×1500L 700 48
D500H×500×2000L 920 64
