Floating dredging hoses are used with dredgers for silt/gravels conveyance. The suitable conveyance matters are usually mud, clay, fine sand, fine-mid sand, and so on. The suitable working temperature for the floating hose is from -20℃ to +50℃.
With the deep understanding of the floating dredging hoses, the advantages of convenience and stability have been recognized by most of the manufacturers. And the execution of floating dredging hoses at sea becomes more and more.
Product Features:
1. Outer cover with excellent abrasion resistance and UV protection.
2. Colored indicator layer.
3. Single foam flotation casing to prevent water absorption. The hose emergence above water is not less than 20% of the total volume.
4. High quality, wear-resistant rubber.
5. Flange design according to customers’ request.
6. Bending angle: in working condition, the bending angle is from 0 to 45.
Specification:
| Inner Diameter(mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| Working Pressure(Mpa) | 1.2 | 1.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 2.5 |
View the video about our floating dredging hose production:
View the video about our floating dredging hose working:
Production

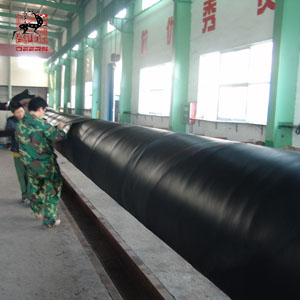

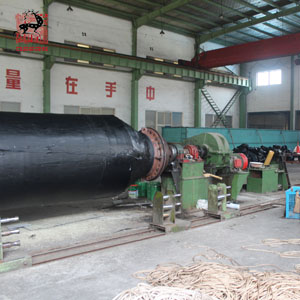

Mold core will be twined with rubber. After that, use PU foam layer to keep floating hose float. The outer cover layer is rubber. The cover layer will be twined with pressing cloth. Step by step, to make sure the hose is durable and flexible. After the self-floating hose is finished, it will be packed with PE film.
View production videos about our dredging hose:
Product Testing
After the product is completed, in order to ensure the quality of the product, we will conduct self-test or third-party testing agency testing according to customer requirements, such as BV or SGS testing institutions, floating hose testing includes visual inspection, bending test, Pressure test. All test results meet the ISO standard.
-
- bending testing-1
-
- bending testing-2
-
- water pressure testing-1
View testing videos about our dredge hose:
Packaging
The size and number of floating dredging hoses determine the way of packing. We have rich experience in packing.
Application
Floating hose is widely used in dredgers for silt/gravels conveyance. The suitable transmission medium is usually mud, clay, fine sand, fine-mid sand, and so on. Floating dredging hose is suitable for the most extreme sea or mining conditions, it is equipped with polyethylene foam, floating hose is set to the buoyancy of stacked materials.
