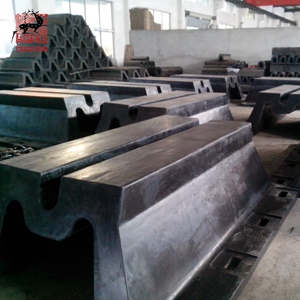

π Type Rubber Fender

Features
1. large contact area ,little surface pressure
2. high energy absorption low reaction force
3. easy for installation

BASIC INFO Production Testing Packaging Cases

π  type rubber fender(TT fender) is one kind mofular fender, TT rubber fenders system was made of this type fender, the frontal panel and unwpe pad, this type marine fenders have a highly efficient geometry, prociding high energy absorption with a low reaction froce, the can be mounded horizontally or vertically and combined with panel.

View videos about our marine rubber fender production:

Application:

1. High suitable for the large wharf
2. Rubber fender is a kind of protection facility suitable to be installed on the wharf. It can be absorbed the energy upon ship alongside and reducing the impact strength to ensure the structure of vessel and wharf harmless.
3. Rubber fenders are the simplest and most appropriate solution for a wide range of applications in areas used as wharf moorage, guaranteeing long lasting performance and requiring no maintenance. Their innovative design assures high performance, fast and easy moorage, and maximum ship stability even in situations of extreme stress, thanks to the vulcanized steel plates placed on the base and completely covered with rubber.

Measures

specification H c d e f i j Weight(kg)
H600 600 150 500 65 1500 370 500 600
H800 800 150 600 100 1700 460 500 900
H1000 1000 250 700 200 2000 550 600 1280
H1250 1250 325 800 200 2450 650 850 1800
H1400 1400 325 900 200 2700 730 900 2200
H1700 1700 350 1050 200 3150 860 1050 3100
H2000 2000 400 1300 200 3700 1000 1300 4200
H2250 2250 550 1350 300 4000 1150 1300 5400
H2250 2250 675 1400 300 4400 1200 1600 6000

Length

L=1000 L=1500 L=2000 L=2500
       D     Q    n D     Q     n D      Q     n D      Q     n
H600 700 150 1 600 150 2 850 150 2 700 200 3
H800 700 150 1 600 150 2 850 150 2 700 200 3
H1000 700 150 1 600 150 2 850 150 2 700 200 3
H1250 700 150 1 600 150 2 850 150 2 700 200 3
H1400 700 150 1 600 150 2 850 150 2 700 200 3
H1700 700 150 1 600 150 2 850 150 2 700 200 3
H2000 700 150 1 600 150 2 850 150 2 700 200 3
H2250 600 200 1 550 200 2 800 200 2 700 200 3

Performance list

specification Super high reaction force High reaction force Standard raction force Low reaction force
KN       KN-M KN      KN-M KN      KN-M KN      KN-M
H800 650 199 605 185 518 158 432 132
H1000 810 338 755 314 650 270 540 225
H1250 1010 526 945 490 810 420 679 350
H1400 1130 660 1060 615 910 528 758 440
H1700 1380 970 1290 906 1100 708 920 648
H2000 1620 1345 15100 1258 1298 1080 1080 898
H2250 1820 1700 1700 1588 1460 1360 1216 1133
