Turn Cell Fender

Features:
1. Low reaction force and high energy absorption;
2. Fender performance is free from the influence of ship inclining and berthing;
3. Applicable for dry docks.

BASIC INFO Production Testing Packaging Cases

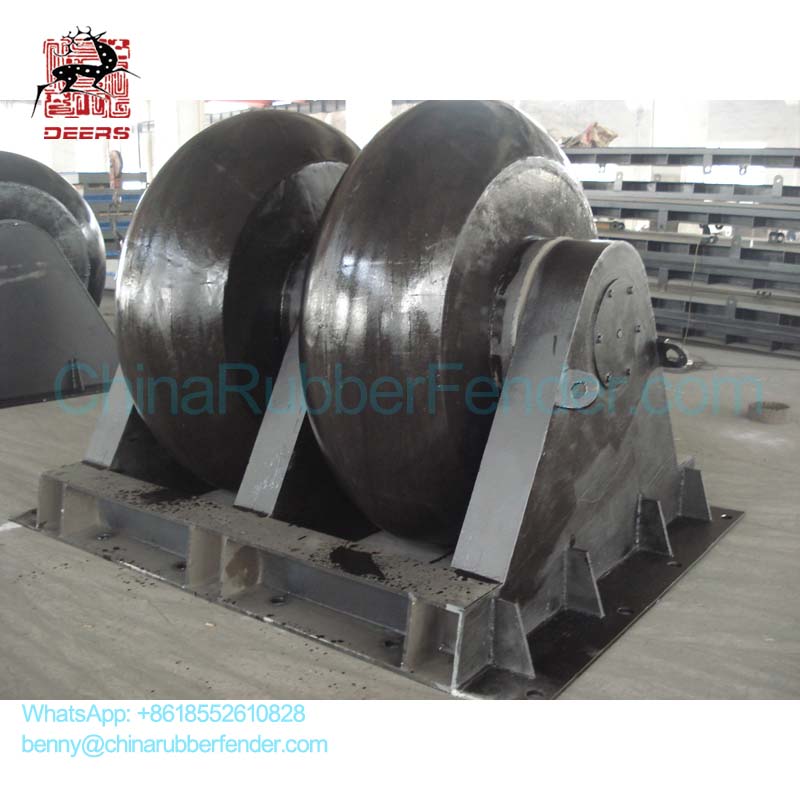

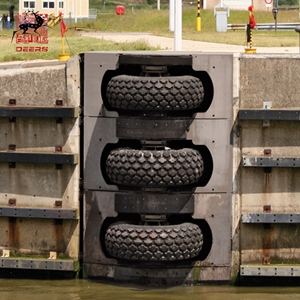

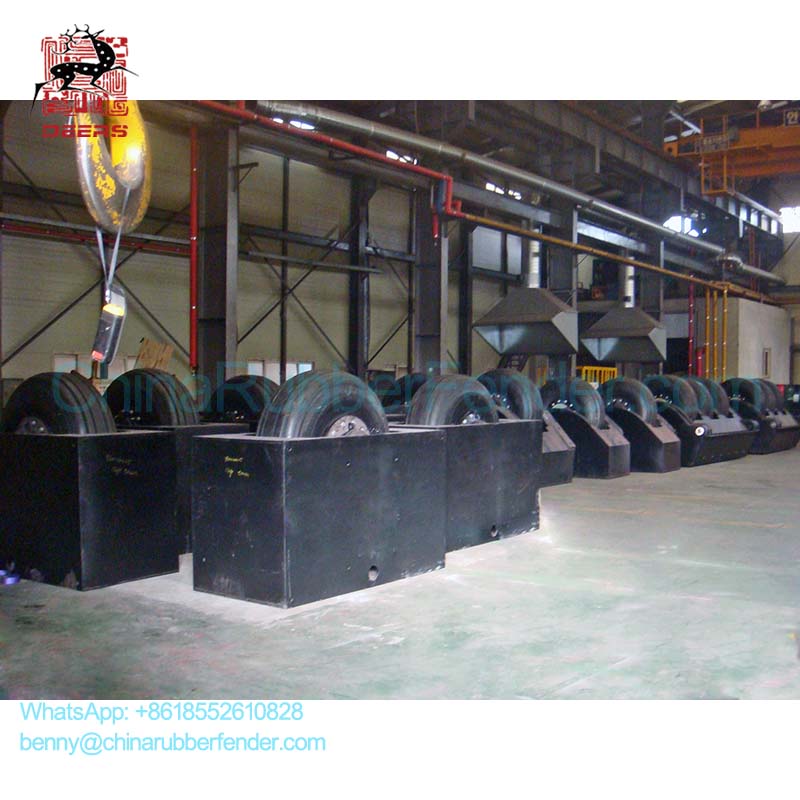

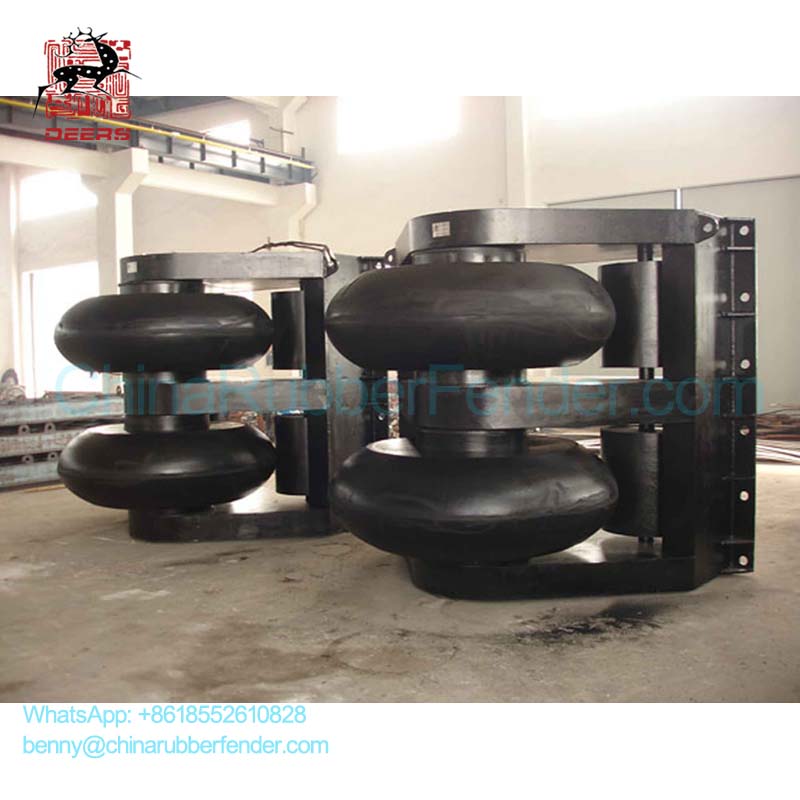

Turn cell fenders(Roller Fenders) are hollow rubber fenders. They are designed to absorb large impacts and to provide high wear resistance. Fitted to a rotating axel, turn cell rubber fender effectively cope with impact forces using the inherent expansion and contraction of the hollow circular rubber and by rolling in the direction of the ships movement. The system is almost entirely maintenance-free when compared to more sophisticated protection systems.

View videos about our marine rubber fender production:

Specifications:

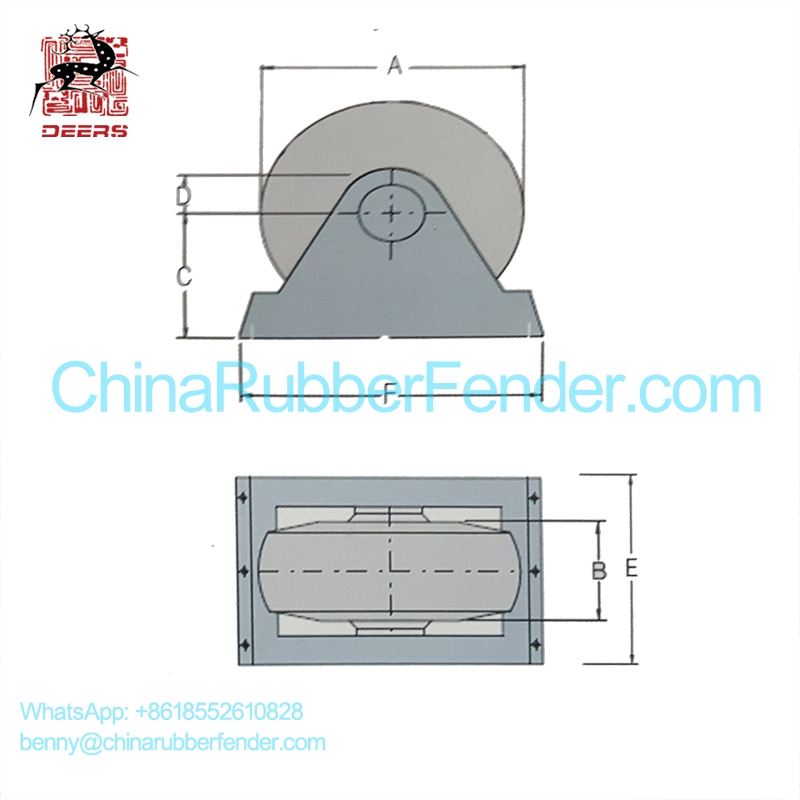

Turn Cell Fender size

A B C D E F G Weight
Model (mm) (mm) (mm) (mm) (mm) (mm) Turn Cells (kg)
D1-060-20 600 200 320 110 420 695 1 120
D1-075-25 750 250 400 140 510 870 1 230
D1-090-30 900 300 480 165 610 1040 1 410
D1-120-40 1200 400 640 220 820 1380 1 980
D1-150-50 1500 500 800 275 1010 1740 1 1810
D1-180-60 1800 600 960 330 1210 2080 1 3130
D1-210-70 2100 700 1155 385 1410 2440 1 4800
D1-240-80 2400 800 1280 440 1610 2770 1 6040
D2-060-20 600 200 320 110 770 695 2 210
D2-075-25 750 250 400 140 935 870 2 420
D2-090-30 900 300 480 165 1120 1040 2 775
D2-120-40 1200 400 640 220 1500 1380 2 1770
D2-150-50 1500 500 800 275 1850 1740 2 3330
D2-180-60 1800 600 960 330 2215 2080 2 5720
D2-210-70 2100 700 1155 385 2590 2440 2 9750
D2-240-80 2400 800 1280 440 2950 2770 2 12400
D3-060-20 600 200 320 110 1120 695 3 310
D3-075-25 750 250 400 140 1360 870 3 610
D3-090-30 900 300 480 165 1630 1040 3 1080
D3-120-40 1200 400 640 220 2180 1380 3 2550
D3-150-50 1500 500 800 275 2690 1740 3 4850
D3-180-60 1800 600 960 330 3220 2080 3 8400
D3-210-70 2100 700 1155 385 3770 2440 3 13670
D3-240-80 2400 800 1280 440 4290 2770 3 18390
